Heat Wave III

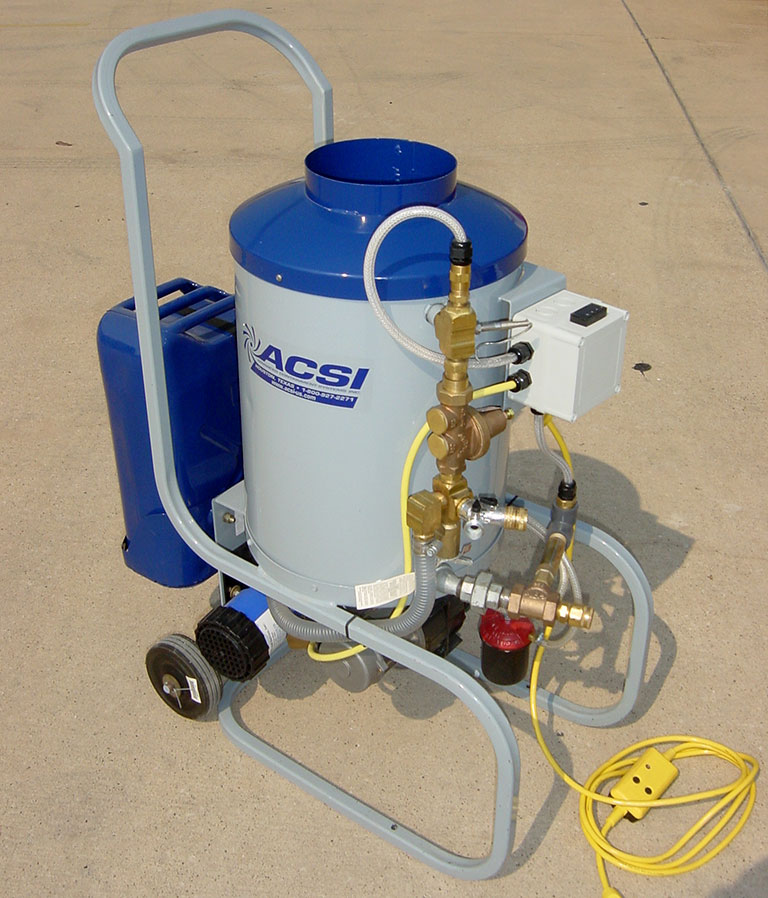

Heat Wave III is a compact portable full-flow diesel fired water heater. Its rugged square tubing steel frame and 6×2 solid rubber wheels make the unit easy to load, unload and transport. The unit’s high-efficiency schedule 40 heat exchanger supports flow rates of up to a maximum of 10 gallons per minute with no water mixing! A digital programmable temperature controller with multi-colored LED readout and passcode protected settings precisely modulates outlet temperature for unrivaled user comfort. Redundant water flow, temperature safety valves, and a ground fault circuit interrupter supply cord are among the many safety features. Heat Wave III comes standard with a five-gallon heavy-duty removable steel jerry can fuel tank and quick coupled fuel supply lines for easy refueling. An optional hydraulic-powered dosing pump allows for precisely metered solution injection into the outlet stream.

Brochure

Download HeatWave III Brochure

Parts



Part Number:  Descriptions:
56220105  Fuel Tank GI Jerry Can 5 Gal
56220106  Fuel Tank Holder
61010103  Fuel Tubing 1/4″
61080003  Hose Clamp #4
61080012  Hose Clamp #12
61090402  Hose Barb for Fuel Tank
61090404  Hose Barb for Fuel Pump
71240805  Cord Grip
72270401  Switch-Toggle On/Off
72271100  Flow Switch
83180101  Toggle Switch Boot
87060410  Pressure Regulator Valve
97000177  Garden Hose Swivel
97000180  Cable 18/4
97000209  Quick Disconnect Socket
97000210  Quick Disconnect Plug
97000219  Burner
97000278  Valve Y-Connector
97000284  Fuel Filter 1/4″ FPT In/Out
97000384  GFCI Outlet
97000478  Thermo Coupler
97000479  High Limit Switch
97000480  Power Relay 30 Amp
97000486  Wheel 14″ TUFF
97000509  Boiler Coil W/O Skin
97001075  Switch Push Button
97001083  Temperature Controller
Call Srvc Cntr  Flue Cap
Call Srvc Cntr  Heater Coil
Call Srvc Cntr  Burner Gasket
Call Srvc Cntr  Burner Fuel Nozzle
Call Srvc Cntr  Burner Electrodes
Call Srvc Cntr  Burner Blower Motor
Call Srvc Cntr  Burner Ignitor
Call Srvc Cntr  Burner Blower Wheel

Purchase

Advanced Containment Systems, Inc. engineers abatement equipment to perform in the most diverse environments throughout the nation. You can find our ACSI abatement equipment at these locations:

Aramsco
Jon-don
Inline Distributing Company
Abatix
Airgas
ICRA Solutions
Allredi
Mallory Safety and Supply

Manual

Download Heat Wave III Manual
